Coaxfilters

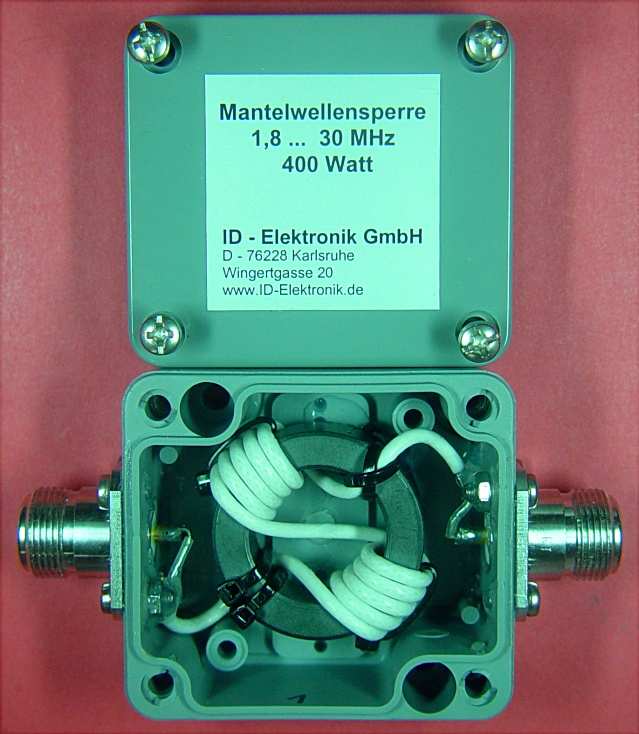

Coaxfilter Type 1:
in plastic housing
protection class IP65

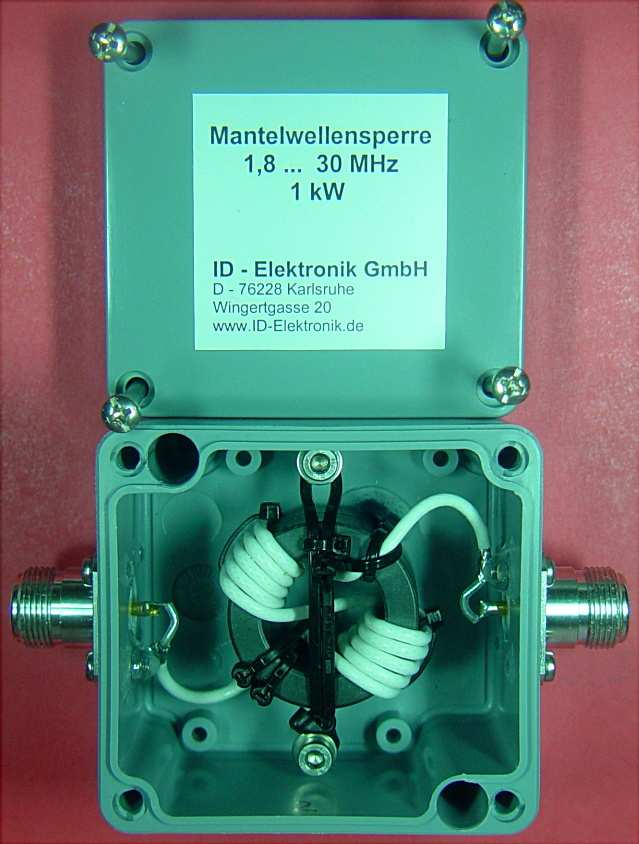

Coaxfilter Type 2:
in plastic housing
protection class IP65

After many years of watching researches and reading contradictory descriptions and different theories about baluns and coaxfilters we made our own researches. We came to the decision, that only the coaxfilters we built in the meantime ourself fulfill all requests.

Frequency range: 1 - 54 MHz

Low passage attenuation < 0,1 dB

Big common mode attenuation starting at 1,8 Mhz > 23 dB; above 7 MHz > 30 dB

Max. continuous power rating: 400W (Type 1) and 1kW (Type 2)

Plastic housing made of fibre optics strengthened polyamide

Protection class IP 65 (6 = no dust entry; 5 = hose-proof )

all screws made of stainless steel

Connectors or In- and Output: N or PL plugs (please select with your order)



Housing dimensions without plugs: (length - width - height in mm):
Type 1 : 64 x 58 x 34
Type 2 : 80 x 75 x 57

Coaxfilter by DK2DB

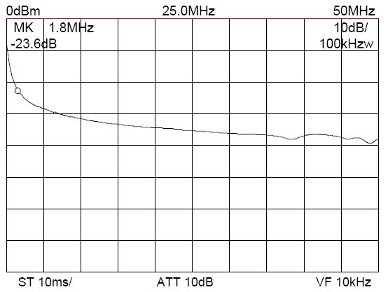

"common mode attenuation"

Prices (please select connectortype with your order!):



Coaxfilter Type 1 with 2 x N-plugs

€ 60,00

Coaxfilter Type 1 with 2 x PL-plugs

€ 60,00

Coaxfilter Type 2 with 2 x N-plugs

€ 80,00

Coaxfilter Type 2 with 2 x PL-plugs

€ 80,00



NEW:

Coaxfilter Type 3: optimized for medium wave

€ 80,00

 Common mode attenuation >35dB at 474 kHz; max. power 250 W; N- or PL-version
