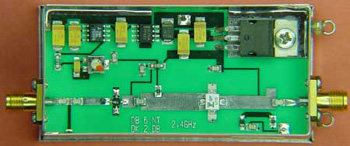

PA 13 - 0,9 - 50

13 cm PA one-stage with FLU 10
Pin = 50 mW - Pout = 0,9 W
Dimensions 37 x 74 x 30mm
Power usage ~ 200 mA

No longer available

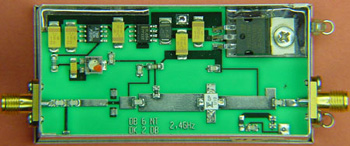

PA 13 - 0,9 - 5

13 cm PA two-stage with FLU 10
Pin = 5 mW - Pout = 0,9 W
Dimensions 37 x 74 x 30mm
Power usage ~ 280 mA

No longer available

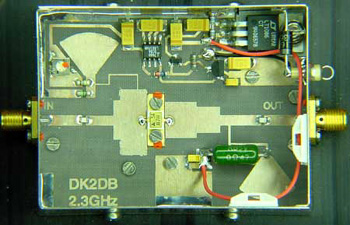

PA 13 - 1

13 cm PA one-stage with MGF 0904
Pin = 0,15 W - Pout = 1,5 W
Power usage ~ 400 mA
Dimensions 55 x 74 x 30mm

No longer available

PA 13 - 4

13 cm PA one-stage with MGF 0905
Pin = 0,5 W - Pout = 4 W
Power usage ~ 800 mA
Dimensions

No longer available

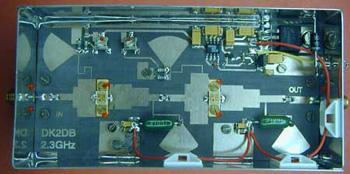

PA 13 - 5

13 cm PA two-stage with MGF 0904/0905
Pin = 50 mW - Pout = 5 W
Power usage ~ 1,5 A
Dimensions 55 x 111 x 30mm

No longer available

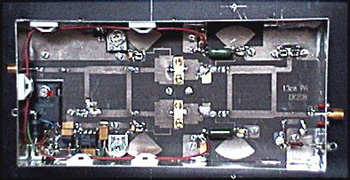

PA 13 - 10

13 cm PA one-stage with 2 x MGF 0905
Pin = 1,5 W - Pout = 10 W
Power usage ~ 2,5 A
Dimensions 74 x 148 x 30mm

No longer available

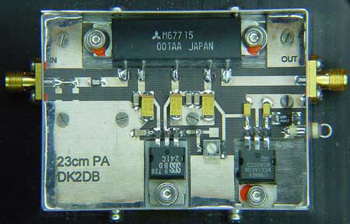

PA 23 - 2

Mitsubishi Module M 67715
Pin = 5 mW - Pout = 2 W
Internal power output: 0,1 - 2 W, adjustable.
Power supply voltage: 12-15 V DC
Power usage ~ 800 mA
Input and output jacks: SMA Standard
Dimensions: 37 x 74 x 30mm

No longer available
